Structural · A-YQNXS

Skewed Beam To Beam Connection

Materials

Steel

Elements

Columns Beams Connections / Plates

Connections

Shear Tab / Single Plate Beam-to-Column Beam-to-Beam

About this detail

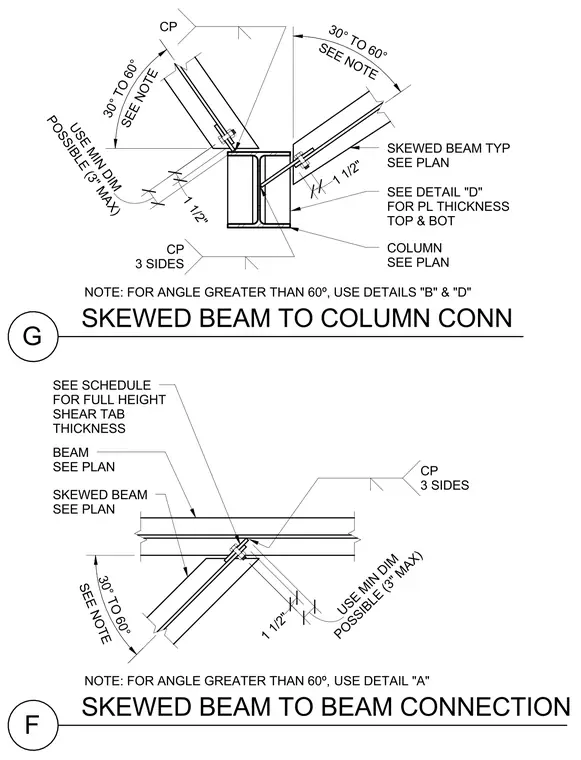

The structural steel connection details show skewed beams framing into a supporting column and a supporting beam at angles ranging from thirty to sixty degrees. A shear tab sized per the structural schedule connects the skewed beam web using bolts, with plate thickness at the top and bottom referenced to detail D. A one and one-half inch cope cut is applied to three sides with a three-inch maximum dimension, utilizing minimum dimensions as noted. Welds are specified around three sides of the connection plate. Specific detailing notes govern conditions for skew angles greater than sixty degrees, directing users to alternate details A, B, and D.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
