A square tubing bike rack system is mounted to a partition as scheduled, utilizing a base plate secured with expansion anchors attached to the concrete masonry unit wall. The assembly connects to the wall framing with threaded fasteners passing through the partition framing elements.

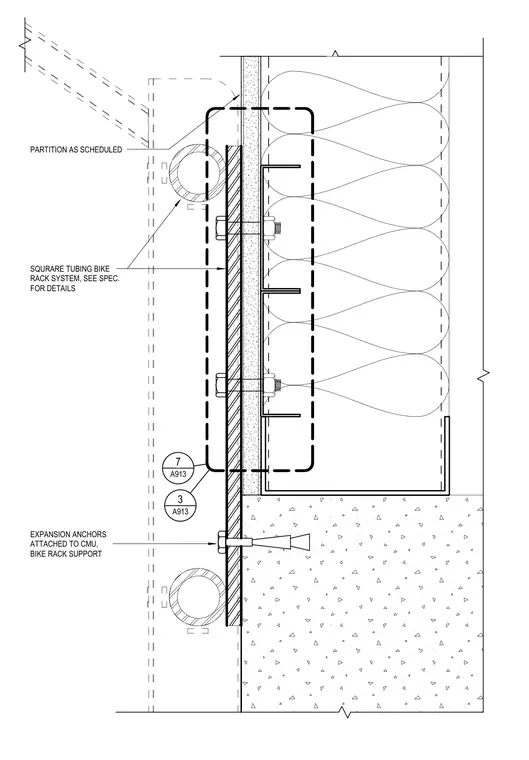

EXPANSION ANCHORS ATTACHED TO CMU, BIKE RACK SUPPORT PARTITION AS SCHEDULED SQURARE TUBING BIKE RACK SYSTEM, SEE SPEC. FOR DETAILS 3 A913 7 A913
