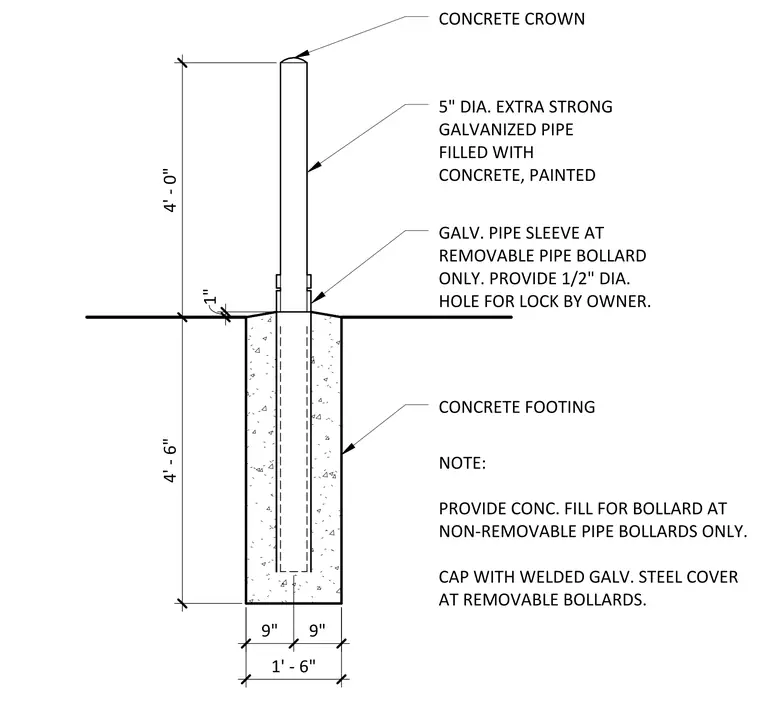

A five inch diameter extra strong galvanized pipe filled with concrete and finished with a painted concrete crown. The pipe stands four feet above grade with a total height of four feet six inches including the concrete footing. A galvanized pipe sleeve is provided at removable pipe bollards only, featuring a one half inch diameter hole for a lock by the owner. The concrete footing measures one foot six inches square by four feet six inches deep. Non removable bollards receive a concrete fill while removable bollards are capped with a welded galvanized steel cover.
4' ‐ 6" 4' ‐ 0" 1" 9" 9" 1' ‐ 6" 5" DIA. EXTRA STRONG GALVANIZED PIPE FILLED WITH CONCRETE, PAINTED CONCRETE CROWN GALV. PIPE SLEEVE AT REMOVABLE PIPE BOLLARD ONLY. PROVIDE 1/2" DIA. HOLE FOR LOCK BY OWNER. CONCRETE FOOTING NOTE: PROVIDE CONC. FILL FOR BOLLARD AT NON‐REMOVABLE PIPE BOLLARDS ONLY. CAP WITH WELDED GALV. STEEL COVER AT REMOVABLE BOLLARDS.
