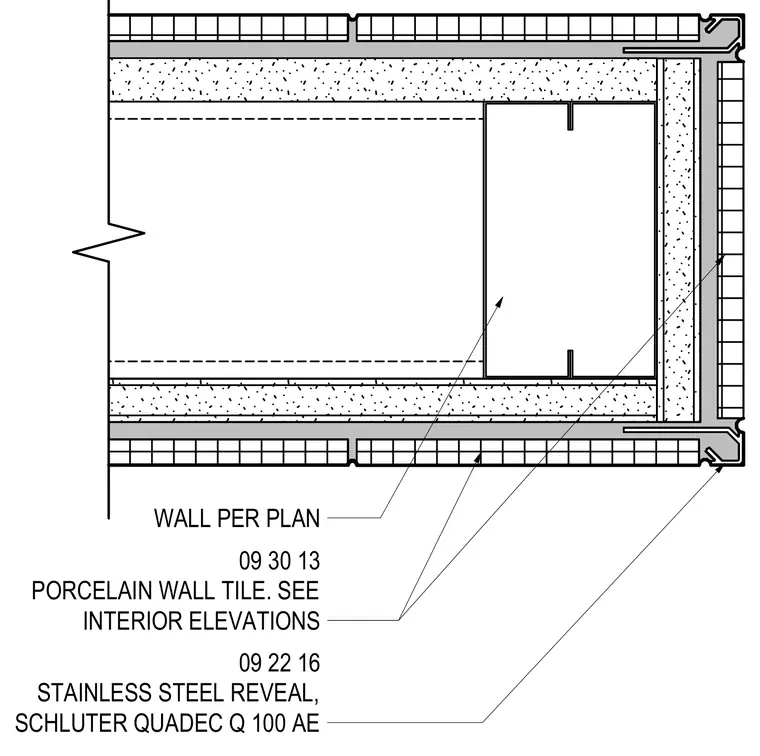

Porcelain wall tile finishes a framed wall assembly per plan with specific tile setting materials. A stainless steel reveal and a Schluter Quadec Q 100 AE profile finish and protect the exterior corner of the tile installation.
WALL PER PLAN 09 30 13 PORCELAIN WALL TILE. SEE INTERIOR ELEVATIONS 09 22 16 STAINLESS STEEL REVEAL, SCHLUTER QUADEC Q 100 AE
