Architectural · A-YPXQE

Tile to Carpet Flooring Transition at Door Threshold

Materials

Elements

About this detail

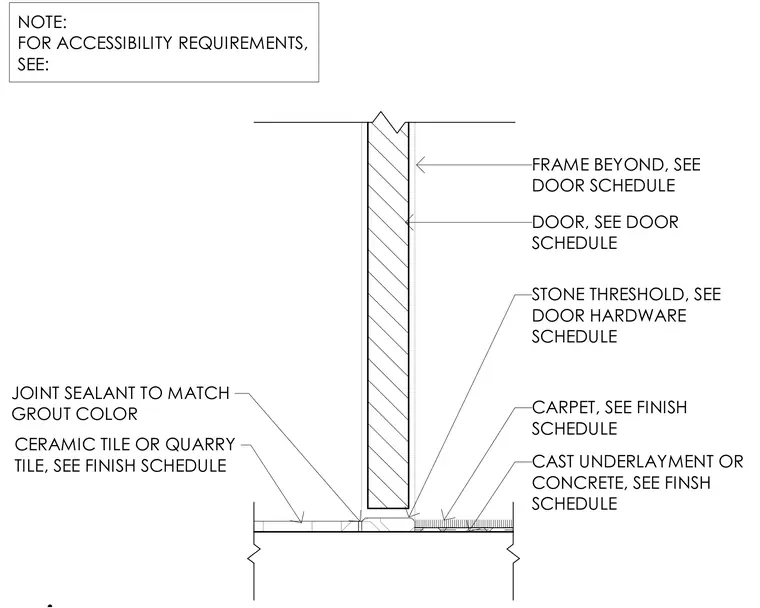

A stone threshold sits beneath the door, bridging the transition between ceramic tile or quarry tile on one side and carpet on the other. The tile is installed over a cast underlayment or concrete subfloor, with a joint sealant specified to match the grout color. A door frame is positioned beyond the threshold per the door schedule.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
