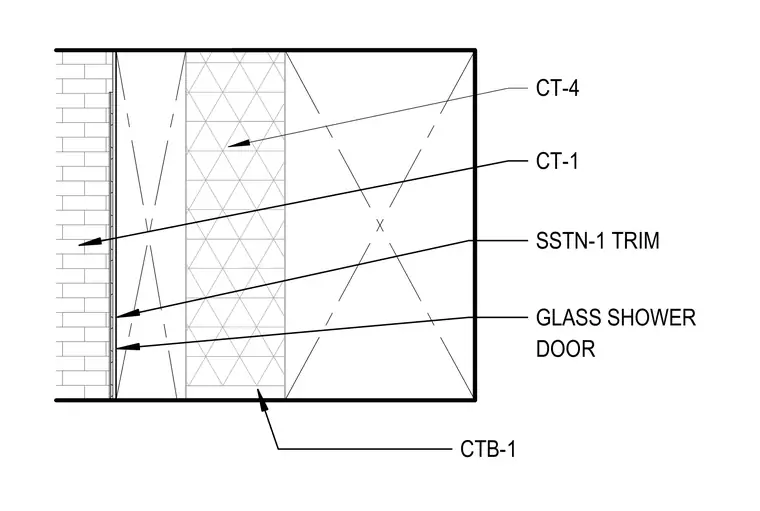

A glass shower door is installed adjacent to a tiled wall assembly with designated CT-4 tile, CT-1 tile, and CTB-1 base. Stainless steel SSTN-1 trim provides edge protection and a clean transition at the assembly boundary.
