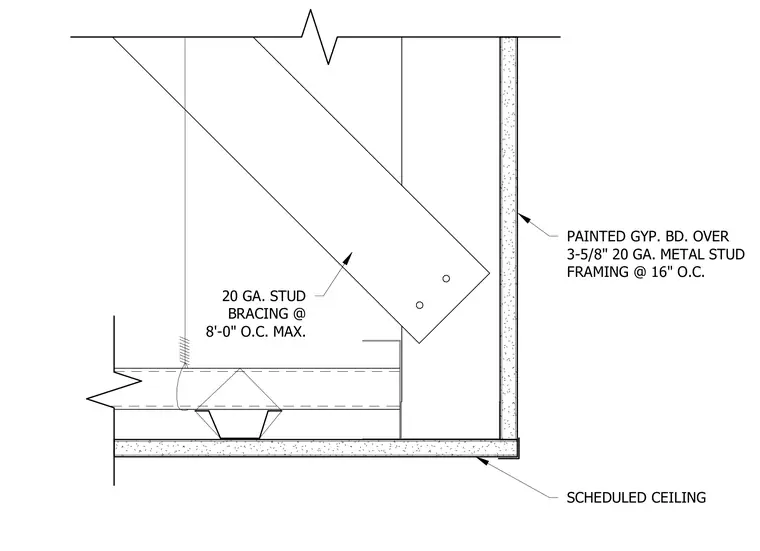

Painted gypsum board is finished over three-and-five-eighths-inch twenty-gauge metal stud framing spaced at sixteen inches on center. A twenty-gauge metal stud diagonal brace is installed at a maximum spacing of eight feet on center to support the ceiling and soffit construction.
SCHEDULED CEILING PAINTED GYP. BD. OVER 3-5/8" 20 GA. METAL STUD FRAMING @ 16" O.C. 20 GA. STUD BRACING @ 8'-0" O.C. MAX.
