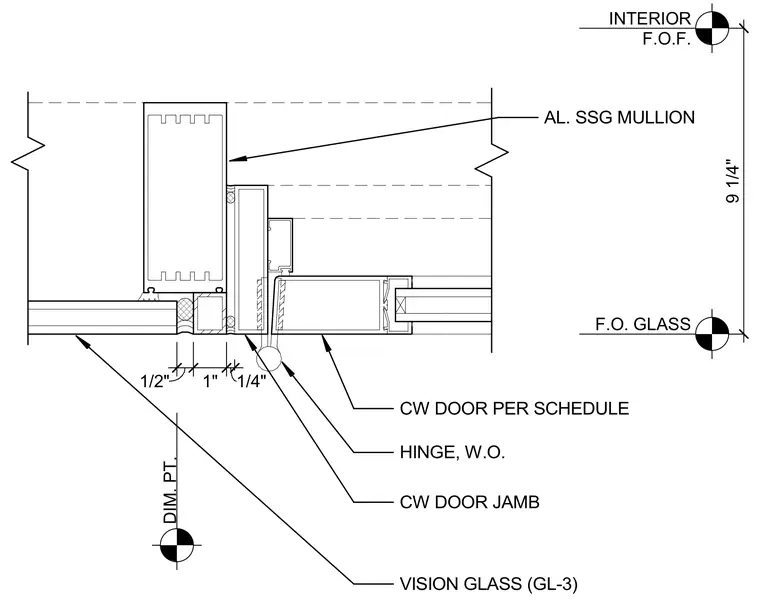

An aluminum structural-silicone-glazed mullion frames the assembly, with vision glass designated as type GL-3 set adjacent. The curtain wall door jamb receives a door hung on hinges. Dimensional reference points locate the interior face of finish relative to the face of glass.
DIM. PT. F.O. GLASS INTERIOR F.O.F. CW DOOR JAMB 9 1/4" CW DOOR PER SCHEDULE VISION GLASS (GL-3) AL. SSG MULLION 1/2" 1" 1/4" HINGE, W.O.
