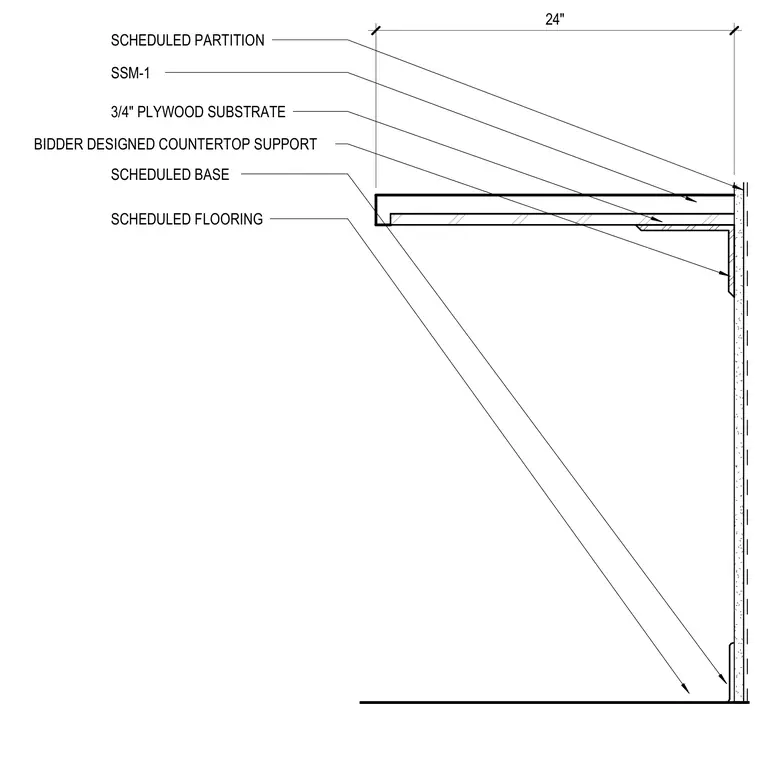

This interior millwork detail shows a solid surface countertop material designated SSM-1 over a three-quarter-inch plywood substrate. The countertop projects twenty-four inches from a scheduled partition and is supported underneath by a bidder-designed countertop support bracket. A scheduled base trim finishes the front edge of the assembly, meeting the scheduled flooring below.
SSM-1 3/4" PLYWOOD SUBSTRATE BIDDER DESIGNED COUNTERTOP SUPPORT SCHEDULED BASE SCHEDULED PARTITION 24" SCHEDULED FLOORING
