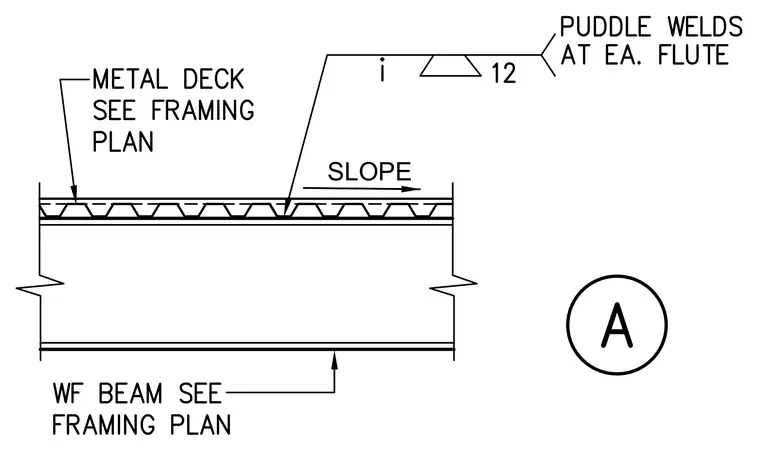

A metal deck bears directly on a wide flange steel beam, sized per the structural framing plan. The metal deck is secured with puddle welds at each flute. The assembly features a designated slope across the top surface of the deck.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
Start membership
