A-YP5BA — Typical Roof Flashing

Architectural · A-YP5BA

Typical Roof Flashing

Scale: 3" = 1'-0"
Units: imperial
Sheet: A7.34
Discipline: Architectural

Materials

Aluminum Composite Membrane / Roofing Stainless Steel

Elements

Facades / Cladding Roofs Waterproofing / Flashing

Connections

Bolted Connection Welded Connection

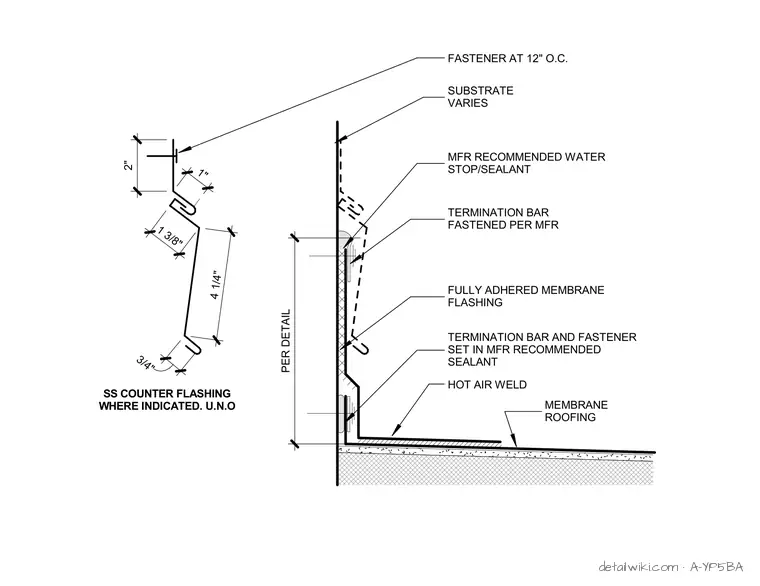

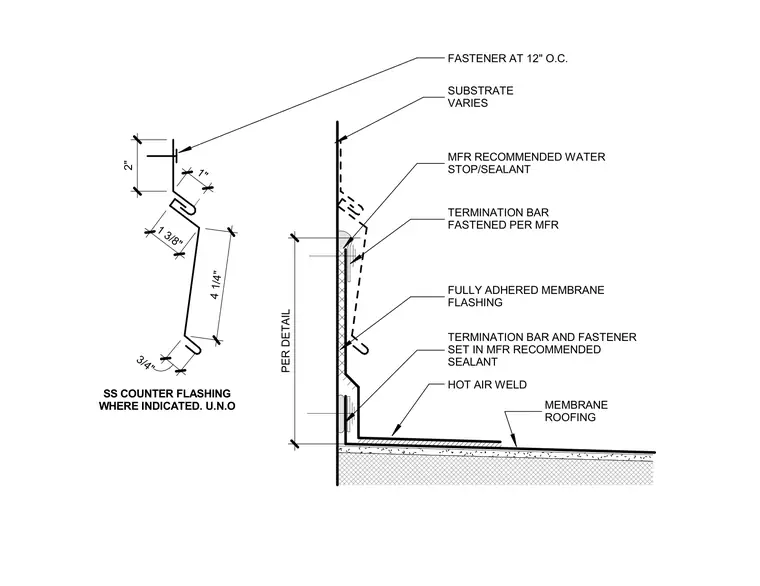

Text on the drawing

TERMINATION BAR FASTENED PER MFR MFR RECOMMENDED WATER STOP/SEALANT TERMINATION BAR AND FASTENER SET IN MFR RECOMMENDED SEALANT FULLY ADHERED MEMBRANE FLASHING HOT AIR WELD MEMBRANE ROOFING PER DETAIL SUBSTRATE VARIES 2" 1 3/8" 4 1/4" 1" 3/4" SS COUNTER FLASHING WHERE INDICATED. U.N.O FASTENER AT 12" O.C.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and open any detail in the built-in CAD editor to edit and export DXF or DWG.
