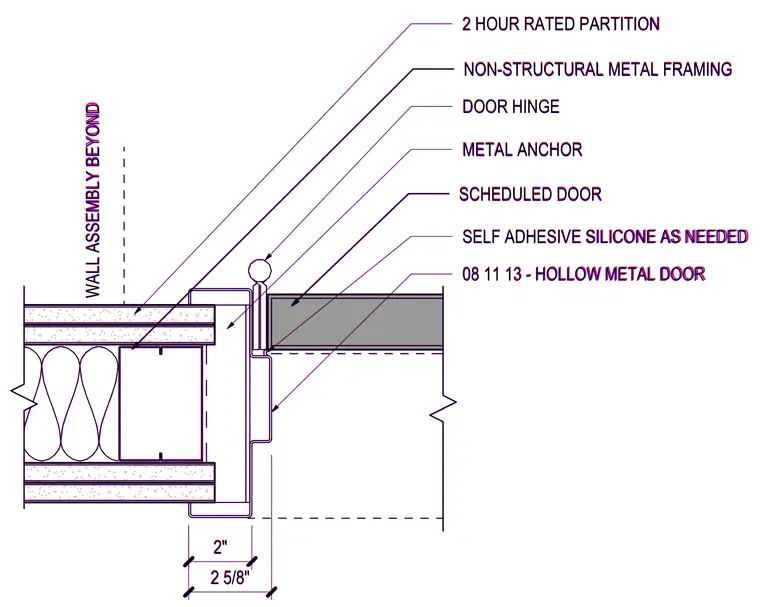

A hollow metal door frame connects to a two-hour rated non-structural metal framing partition with designated metal anchors. The scheduled door leaf is hung with a door hinge attached to the hollow metal frame. Self-adhesive silicone is applied as needed at the interface between the door and frame. The wall assembly beyond consists of steel stud framing with layered gypsum board.
NON-STRUCTURAL METAL FRAMING 2 HOUR RATED PARTITION METAL ANCHOR 08 11 13 - HOLLOW METAL DOOR SCHEDULED DOOR WALL ASSEMBLY BEYOND DOOR HINGE 2" 2 5/8" SELF ADHESIVE SILICONE AS NEEDED NON-STRUCTURAL METAL FRAMING 2 HOUR RATED PARTITION METAL ANCHOR 08 11 13 - HOLLOW METAL DOOR SCHEDULED DOOR WALL ASSEMBLY BEYOND DOOR HINGE 2" 2 5/8" SELF ADHESIVE SILICONE AS NEEDED
