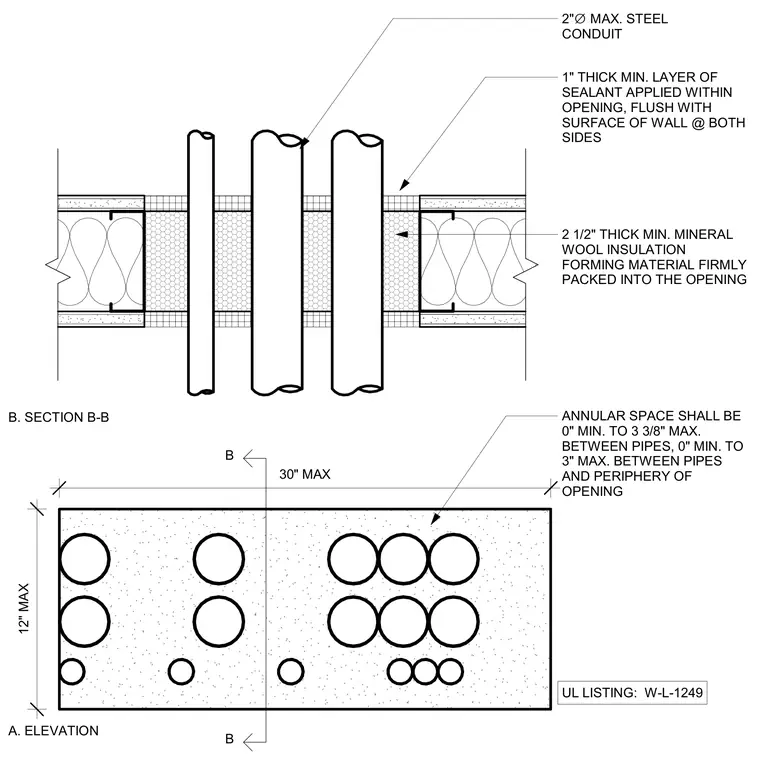

Multiple steel conduits penetrate a partition assembly with a maximum opening size of 12 inches by 30 inches. The annular space ranges from 0 inches minimum to 3-3/8 inches maximum between pipes, and 0 inches minimum to 3 inches maximum between pipes and the periphery of the opening. The penetration is sealed with a two-and-one-half-inch thick minimum mineral wool insulation forming material firmly packed into the opening. A one-inch thick minimum layer of sealant is applied within the opening, flush with the surface of the wall at both sides. The assembly complies with UL listing W-L-1249.
B. SECTION B-B 1" THICK MIN. LAYER OF SEALANT APPLIED WITHIN OPENING, FLUSH WITH SURFACE OF WALL @ BOTH SIDES 2" ∅ MAX. STEEL CONDUIT UL LISTING: W-L-1249 ANNULAR SPACE SHALL BE 0" MIN. TO 3 3/8" MAX. BETWEEN PIPES, 0" MIN. TO 3" MAX. BETWEEN PIPES AND PERIPHERY OF OPENING A. ELEVATION B B 12" MAX 30" MAX 2 1/2" THICK MIN. MINERAL WOOL INSULATION FORMING MATERIAL FIRMLY PACKED INTO THE OPENING
