A-YMW32 — J-Box With Sub 24" Separation

Architectural · A-YMW32

J-Box With Sub 24" Separation

Scale: 3" = 1'-0"
Units: imperial
Sheet: A-802
Discipline: Architectural

Materials

Gypsum / Drywall Metal (misc.)

Elements

Insulation Partitions Walls

Text on the drawing

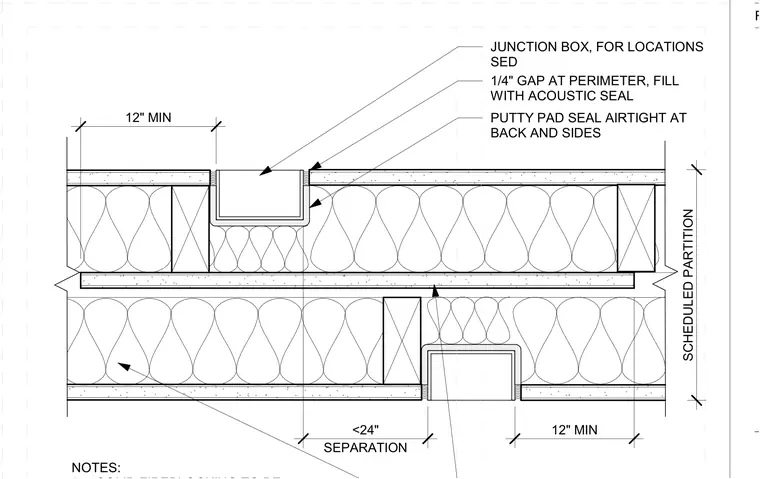

JUNCTION BOX, FOR LOCATIONS SED NOTES: SEPARATION <24" 12" MIN 12" MIN SCHEDULED PARTITION 1/4" GAP AT PERIMETER, FILL WITH ACOUSTIC SEAL PUTTY PAD SEAL AIRTIGHT AT BACK AND SIDES REVISIONS
