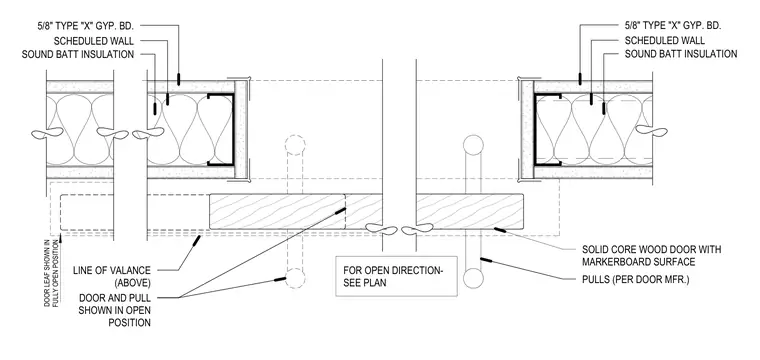

This plan detail shows a sliding barn door jamb interfacing with a metal stud partition finished with five-eighths inch Type X gypsum board and sound batt insulation. The solid core wood door features a markerboard surface and door pulls installed per the manufacturer. The door leaf is shown in both closed and fully open positions relative to the wall face. An overhead valance line is indicated above the sliding mechanism.
5/8" TYPE "X" GYP. BD. SCHEDULED WALL SOUND BATT INSULATION LINE OF VALANCE (ABOVE) DOOR LEAF SHOWN IN FULLY OPEN POSITION FOR OPEN DIRECTION- SEE PLAN DOOR AND PULL SHOWN IN OPEN POSITION PULLS (PER DOOR MFR.) 5/8" TYPE "X" GYP. BD. SCHEDULED WALL SOUND BATT INSULATION SOLID CORE WOOD DOOR WITH MARKERBOARD SURFACE
