An accessible parking stall features an adjacent loading and unloading access aisle with blue striped border markings at a maximum of thirty-six inches on center. The pavement markings include a standard accessibility symbol and the words "NO PARKING" painted in twelve-inch high minimum white letters. A wheel stop is positioned at the head of the stall alongside an accessibility sign mounted per section requirements. Standard minimum dimensions establish an eighteen-foot stall length with varying widths of nine feet for typical stalls and five feet for access aisles.

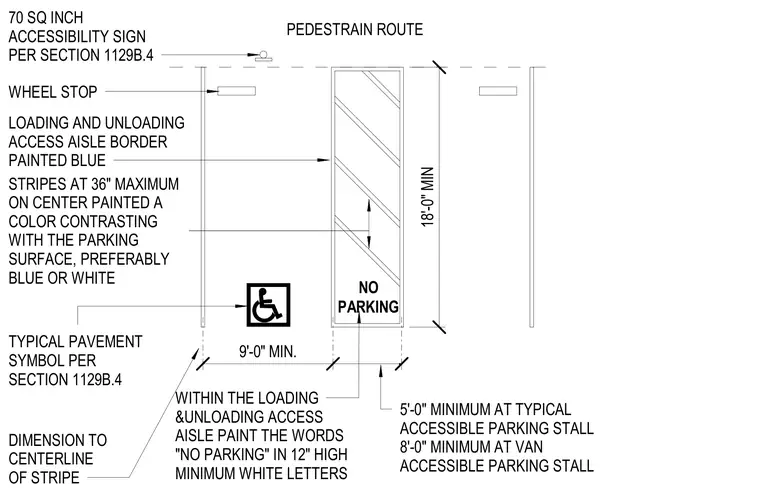

NO PARKING 70 SQ INCH ACCESSIBILITY SIGN PER SECTION 1129B.4 WHEEL STOP LOADING AND UNLOADING ACCESS AISLE BORDER PAINTED BLUE STRIPES AT 36" MAXIMUM ON CENTER PAINTED A COLOR CONTRASTING WITH THE PARKING SURFACE, PREFERABLY BLUE OR WHITE TYPICAL PAVEMENT SYMBOL PER SECTION 1129B.4 DIMENSION TO CENTERLINE OF STRIPE PEDESTRAIN ROUTE WITHIN THE LOADING &UNLOADING ACCESS AISLE PAINT THE WORDS "NO PARKING" IN 12" HIGH MINIMUM WHITE LETTERS 5'-0" MINIMUM AT TYPICAL ACCESSIBLE PARKING STALL 8'-0" MINIMUM AT VAN ACCESSIBLE PARKING STALL 18'-0" MIN 9'-0" MIN. .
