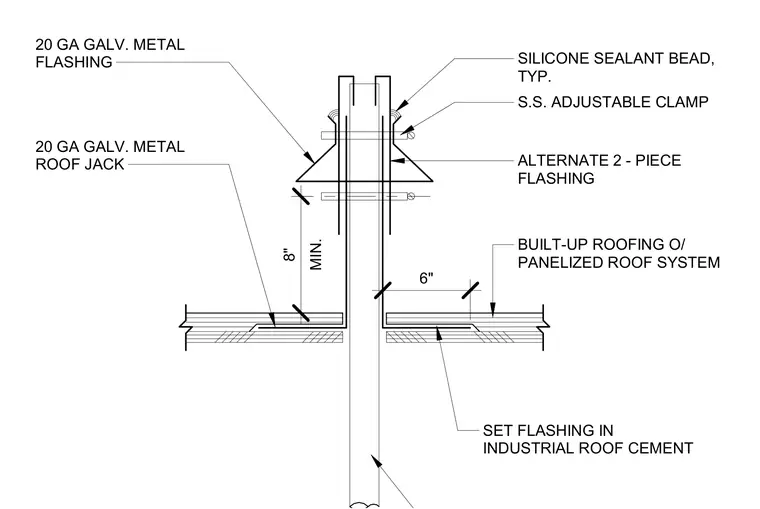

A vent pipe penetrates a built-up roofing assembly over a panelized roof system. A twenty-gauge galvanized metal roof jack is set in industrial roof cement over the roofing membrane with a minimum six-inch extension. An alternate two-piece twenty-gauge galvanized metal flashing surrounds the upper pipe penetration. A stainless steel adjustable clamp secures the flashing assembly, finished with a typical silicone sealant bead.
6" MIN. 8" SET FLASHING IN INDUSTRIAL ROOF CEMENT BUILT-UP ROOFING O/ PANELIZED ROOF SYSTEM ALTERNATE 2 - PIECE FLASHING S.S. ADJUSTABLE CLAMP SILICONE SEALANT BEAD, TYP. 20 GA GALV. METAL FLASHING 20 GA GALV. METAL ROOF JACK
