A wood slat wall begins on level two, anchored by a continuous top and bottom rail for connection to the building structure. The assembly interfaces with the mezzanine level at elevation 115'-0" and top of structural steel at 114'-5 3/4". Exposed structural steel framing is painted, with a gypsum finish wall located below the steel.

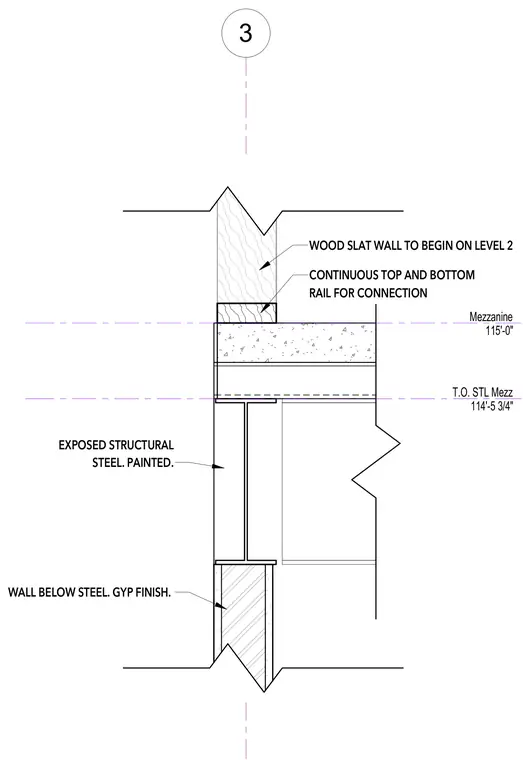

T.O. STL Mezz 114'-5 3/4" Mezzanine 115'-0" 3 WOOD SLAT WALL TO BEGIN ON LEVEL 2 CONTINUOUS TOP AND BOTTOM RAIL FOR CONNECTION EXPOSED STRUCTURAL STEEL. PAINTED. WALL BELOW STEEL. GYP FINISH.
