Architectural · A-YMGGW

Slab on Grade Termination at Concrete Column

Materials

Elements

Columns Walls Floors / Slabs Foundations / Footings Waterproofing / Flashing Drainage

About this detail

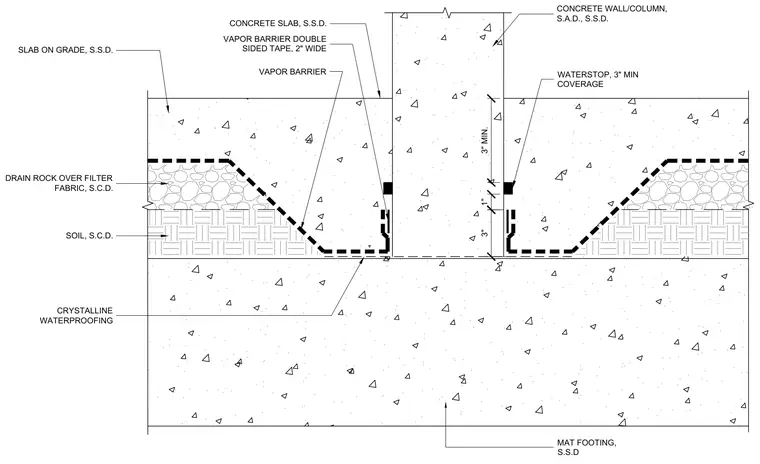

A concrete slab on grade terminates at a concrete wall or column bearing on a structural mat footing. A waterstop with a minimum three-inch coverage is embedded at the joint between the slab and column. A continuous vapor barrier runs beneath the slab, secured with double-sided tape at the vertical transition, over a layer of drain rock and filter fabric placed on compacted soil. Crystalline waterproofing is applied across the top of the mat footing beneath the slab and subbase.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
