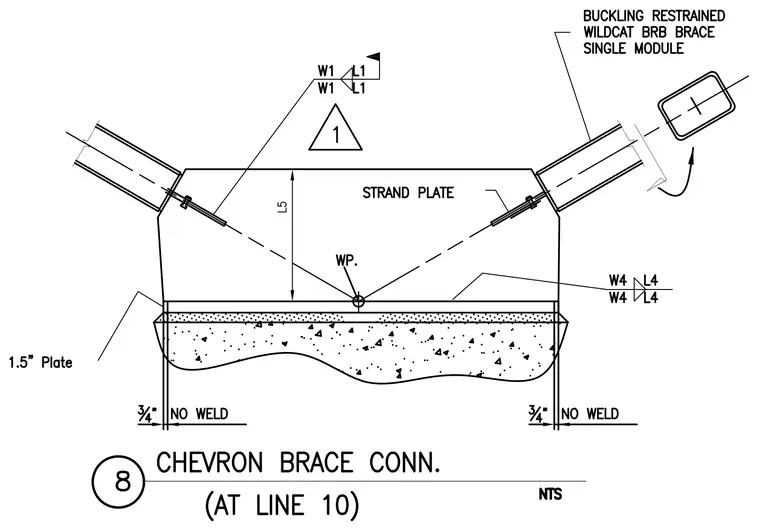

Buckling restrained Wildcat BRB brace single module connects to a strand plate and one and a half inch plate assembly. The connection features welded joints designated by W1, L1, W4, and L4 symbols, with specific three-quarter inch no weld clearances maintained at vertical elements. A working point WP establishes the geometric intersection for the chevron brace alignment.
