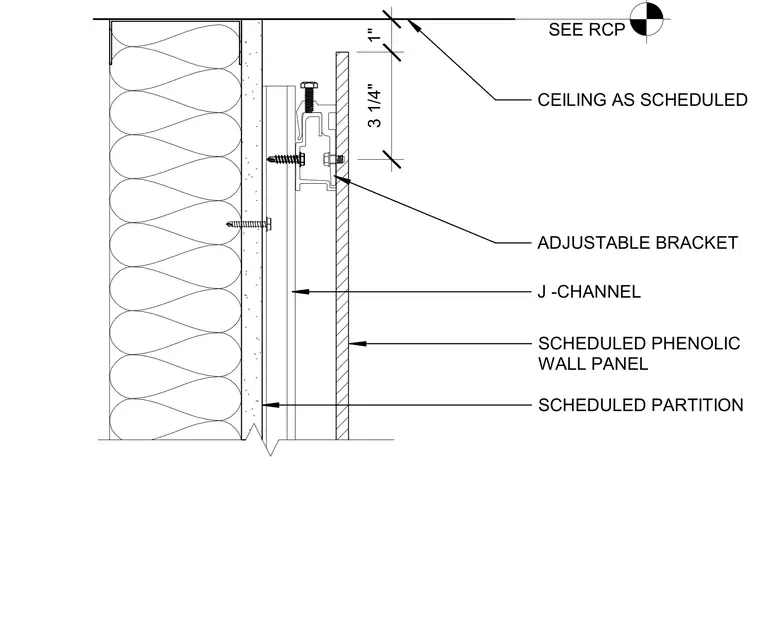

A scheduled phenolic wall panel attaches to a vertical J-channel support using an adjustable bracket assembly. The framing secures back to a scheduled partition wall behind the panels. The top of the assembly interfaces with a scheduled ceiling detailed per the reflected ceiling plan, maintaining a 3-1/4 inch vertical dimension from the ceiling line to the panel bracket.
SEE RCP CEILING AS SCHEDULED 1" 3 1/4" SCHEDULED PARTITION SCHEDULED PHENOLIC WALL PANEL J -CHANNEL ADJUSTABLE BRACKET
