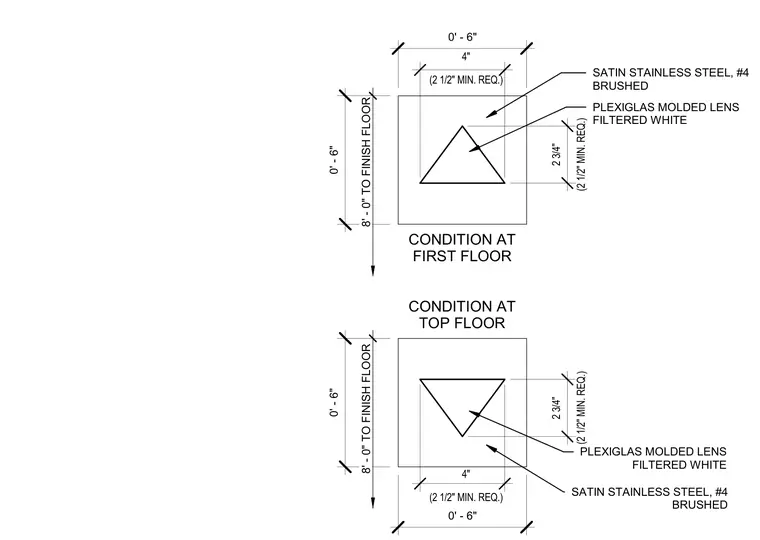

Elevator call button assembly featuring satin stainless steel plates with a number 4 brushed finish and molded plexiglas lenses with filtered white illumination. The layout specifies a square faceplate measuring six inches by six inches with a four-inch centered button element. Dimensions indicate a height of eight feet zero inches to the finish floor at both the first floor and top floor conditions. Minimum required wall cavity or mounting depths are specified at two and one-half inches, with a two and three-quarter inch vertical offset to the lens center.
0' - 6" 0' - 6" SATIN STAINLESS STEEL, #4 BRUSHED PLEXIGLAS MOLDED LENS FILTERED WHITE 8' - 0" TO FINISH FLOOR CONDITION AT FIRST FLOOR (2 1/2" MIN. REQ.) 4" (2 1/2" MIN. REQ.) 2 3/4" 0' - 6" 0' - 6" SATIN STAINLESS STEEL, #4 BRUSHED PLEXIGLAS MOLDED LENS FILTERED WHITE CONDITION AT TOP FLOOR (2 1/2" MIN. REQ.) 4" (2 1/2" MIN. REQ.) 2 3/4" 8' - 0" TO FINISH FLOOR
