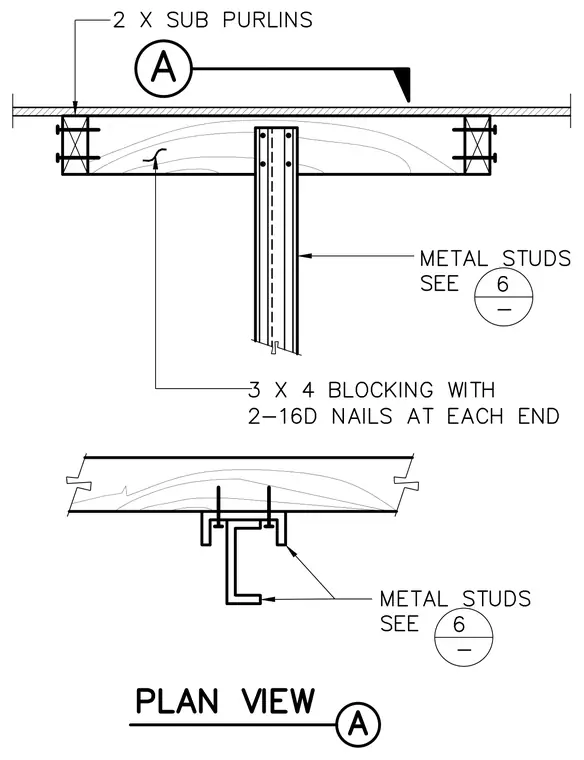

A vertical metal stud partition terminates at a wood ceiling assembly composed of two-inch by sub purlins and three-inch by four-inch wood blocking secured with two sixteen-penny nails at each end. The metal studs are anchored to the framing members above. An alternative plan view presents the configuration of the metal stud attachment to the wood framing.
