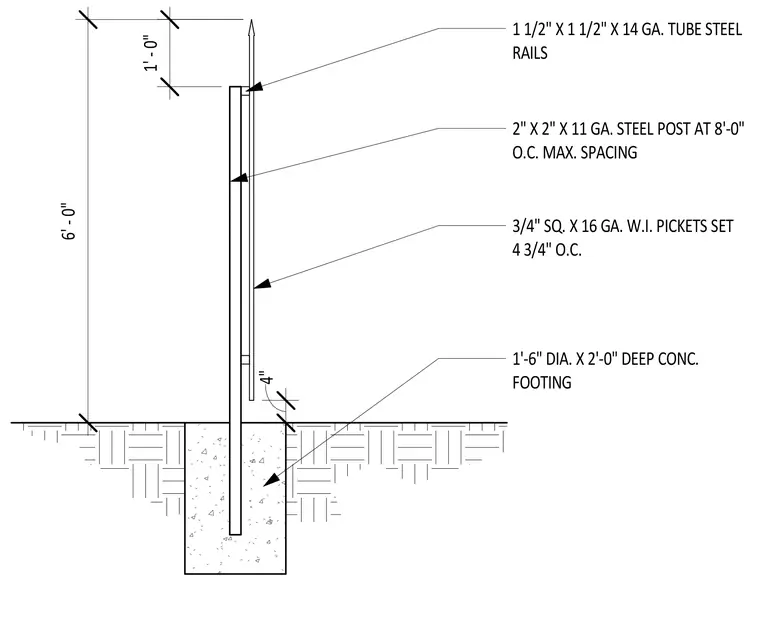

The fence assembly stands six feet tall overall, anchored by two-inch by two-inch by eleven-gauge steel posts spaced at a maximum of eight feet on center. These vertical posts embed into one-and-a-half-foot diameter by two-foot deep concrete footings. Horizontal framing consists of one-and-a-half-inch by one-and-a-half-inch by fourteen-gauge tube steel rails. Three-quarter-inch square by sixteen-gauge wrought iron pickets are set at four-and-three-quarter-inch on center spacings.
6' - 0" 1' - 0" 4" 1 1/2" X 1 1/2" X 14 GA. TUBE STEEL RAILS 2" X 2" X 11 GA. STEEL POST AT 8'-0" O.C. MAX. SPACING 3/4" SQ. X 16 GA. W.I. PICKETS SET 4 3/4" O.C. 1'-6" DIA. X 2'-0" DEEP CONC. FOOTING
