Architectural · A-YKVSA

Wall Mounted Ladder and Stair Railing Details

Materials

Steel Timber / Wood Metal (misc.)

Elements

Walls Stairs Railings / Guards Floors / Slabs Connections / Plates

Connections

Welded Connection Bolted Connection

About this detail

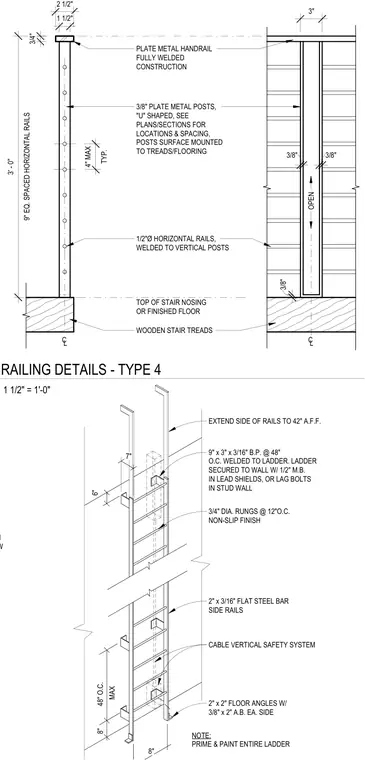

Two distinct metal assembly details comprise a wall-mounted vertical ladder and a metal stair railing system. The ladder features two-inch by three-sixteenths-inch flat steel bar side rails and three-quarter-inch diameter non-slip rungs spaced at twelve inches on center. It is secured to the wall using nine-inch by three-inch by three-sixteenths-inch base plates spaced at forty-eight inches on center, fastened with half-inch machine bolts in lead shields or lag bolts into stud walls. The assembly includes a cable vertical safety system and two-inch by two-inch floor angles anchored with three-eighths-inch by two-inch anchor bolts on each side. The separate railing detail shows three-eighths-inch plate metal U-shaped posts surface-mounted to wooden stair treads, supporting half-inch diameter horizontal rails fully welded to the vertical posts.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
