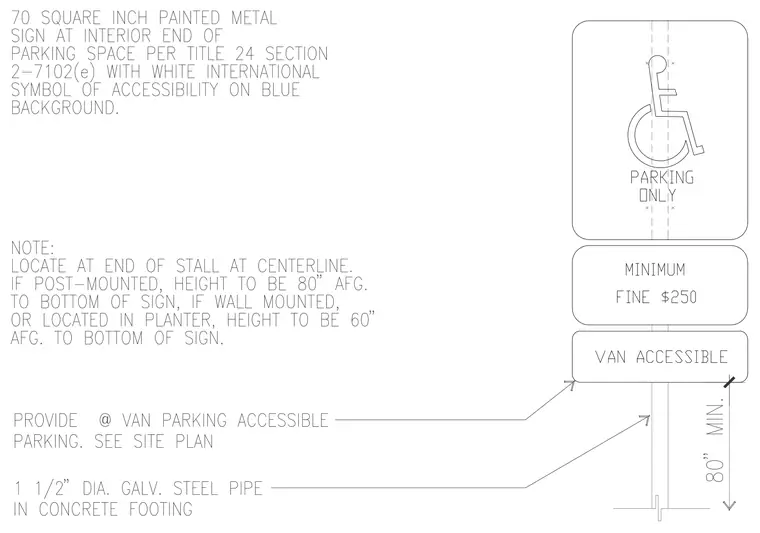

A seventy square inch painted metal sign featuring the white international symbol of accessibility on a blue background is installed at the interior end of a parking space per Title 24 Section 2-7102(e), accompanied by minimum fine and van accessible auxiliary panels. The assembly is supported by a one and one-half inch diameter galvanized steel pipe set in a concrete footing. When post-mounted, the bottom of the sign is positioned at a minimum height of eighty inches above finished grade, centered on the stall.
