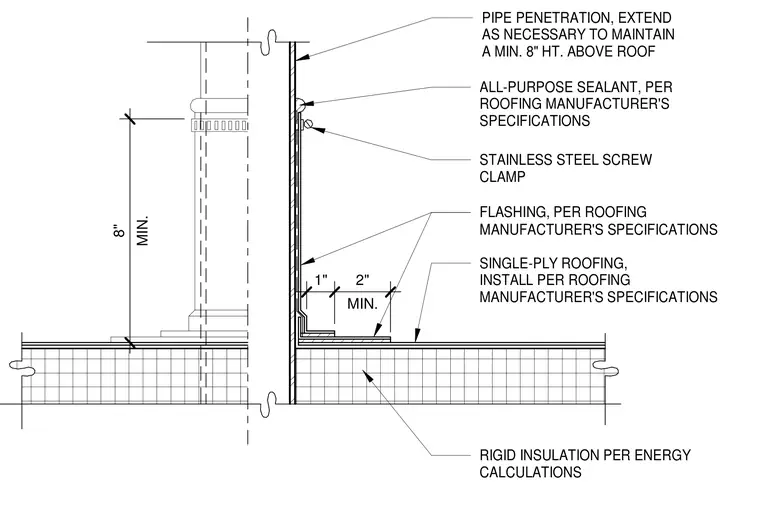

A pipe penetration extends through the roof assembly, maintaining a minimum height of eight inches above the finished roof surface. Single-ply roofing is installed over rigid insulation per energy calculations. Flashing is sealed at the top with an all-purpose sealant and secured with a stainless steel screw clamp, extending with a minimum two-inch horizontal lap.
PIPE PENETRATION, EXTEND AS NECESSARY TO MAINTAIN A MIN. 8" HT. ABOVE ROOF FLASHING, PER ROOFING MANUFACTURER'S SPECIFICATIONS STAINLESS STEEL SCREW CLAMP ALL-PURPOSE SEALANT, PER ROOFING MANUFACTURER'S SPECIFICATIONS RIGID INSULATION PER ENERGY CALCULATIONS SINGLE-PLY ROOFING, INSTALL PER ROOFING MANUFACTURER'S SPECIFICATIONS MIN. 8" 1" MIN. 2"
