A steel ladder installation for an elevator pit, including elevation and isometric views with required dimensions and notes. The assembly is constructed using 2 1/2-inch by 3/8-inch steel side rails punched to receive 3/4-inch diameter steel rungs welded in place. Mounting brackets measuring 2 1/2 inches by 3/8 inches are welded to the side rails on each side and secured to the concrete wall using 5/8-inch diameter expansion bolts typically. The top rung aligns with the finish floor elevation, with a required side rail height extending a minimum of 6 feet above the finish floor. Rungs are spaced equally with a maximum distance of 12 inches between tops, providing a clear rung width of 12 to 16 inches depending on local code.

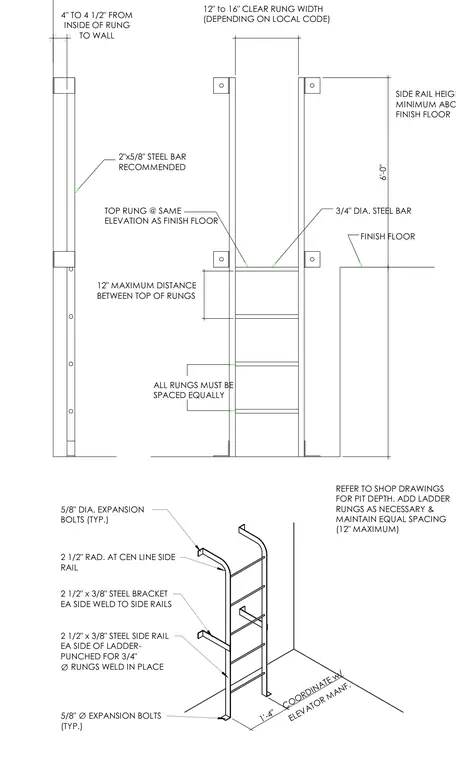

COORDINATE w/ ELEVATOR MANF. 1'-4" 5/8" DIA. EXPANSION BOLTS (TYP.) 2 1/2" RAD. AT CEN LINE SIDE RAIL 2 1/2" x 3/8" STEEL BRACKET EA SIDE WELD TO SIDE RAILS 2 1/2" x 3/8" STEEL SIDE RAIL EA SIDE OF LADDER- PUNCHED FOR 3/4" ∅ RUNGS WELD IN PLACE 5/8" ∅ EXPANSION BOLTS (TYP.) 6'-0" 4" TO 4 1/2" FROM INSIDE OF RUNG TO WALL 12" to 16" CLEAR RUNG WIDTH (DEPENDING ON LOCAL CODE) REFER TO SHOP DRAWINGS FOR PIT DEPTH. ADD LADDER RUNGS AS NECESSARY & MAINTAIN EQUAL SPACING (12" MAXIMUM) ALL RUNGS MUST BE SPACED EQUALLY 12" MAXIMUM DISTANCE BETWEEN TOP OF RUNGS TOP RUNG @ SAME ELEVATION AS FINISH FLOOR 2"x5/8" STEEL BAR RECOMMENDED 3/4" DIA. STEEL BAR FINISH FLOOR SIDE RAIL HEIGHT MINIMUM ABOVE FINISH FLOOR
