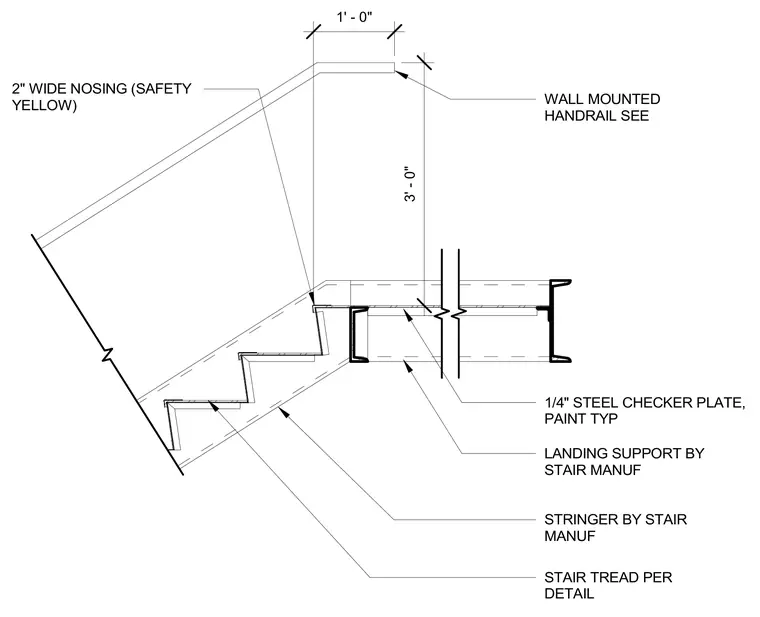

A metal pan stair occurs at the main floor landing. The stair stringers and stair treads are provided by the stair manufacturer, featuring stair treads per detail and a two-inch wide safety yellow nosing. The landing consists of a one-quarter-inch steel checker plate with typical paint finish, supported by a landing support provided by the stair manufacturer. A wall-mounted handrail is positioned above the landing at a three-foot height with a one-foot dimension.
STRINGER BY STAIR MANUF STAIR TREAD PER DETAIL LANDING SUPPORT BY STAIR MANUF WALL MOUNTED HANDRAIL SEE 3' - 0" 1' - 0" 1/4" STEEL CHECKER PLATE, PAINT TYP 2" WIDE NOSING (SAFETY YELLOW)
