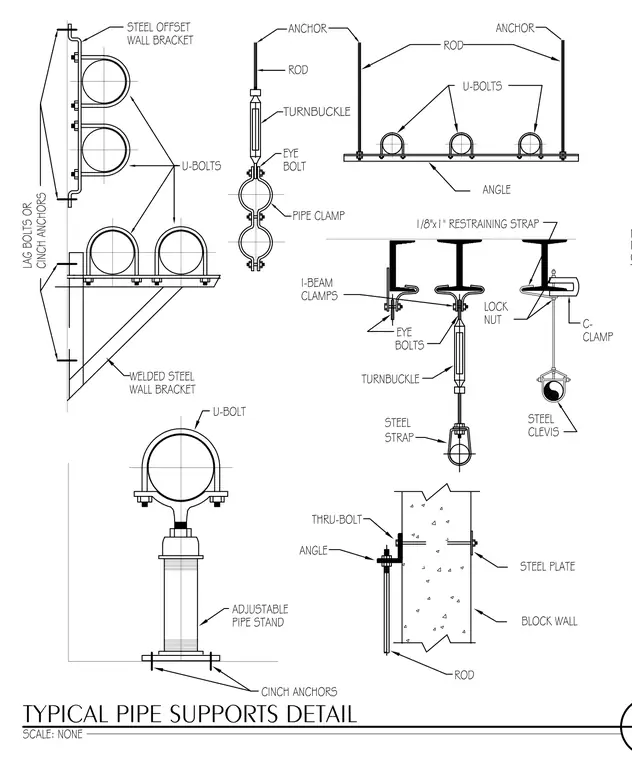

Various standard pipe support and hanging assemblies are detailed for wall, floor, and overhead mounting. Wall installations utilize steel offset wall brackets and welded steel wall brackets secured with lag bolts or cinch anchors, supporting pipes with U-bolts. Floor-mounted configurations employ an adjustable pipe stand anchored with cinch anchors and topped with a U-bolt clamp. Overhead trapeze assemblies feature hanger rods, turnbuckles, eye bolts, and structural angles with multiple U-bolts. Additional overhead details show threaded rods suspended from I-beam clamps, C-clamps, and steel straps with turnbuckles, along with a side-mounted angle and through-bolt assembly attached to a concrete block wall.
