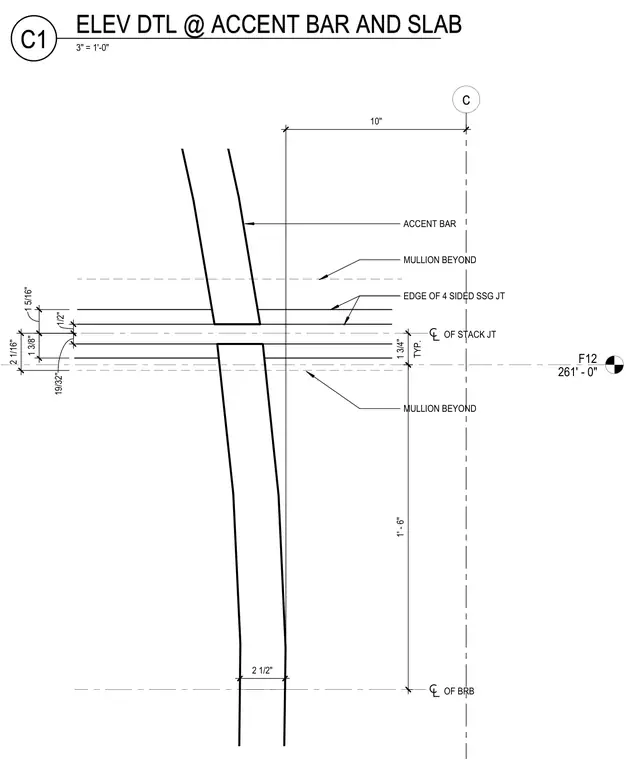

An accent bar aligns with a horizontal stack joint featuring a four-sided structural silicone glazed joint. The assembly references column grid line C and centerline F12 at elevation 261'-0". Vertical mullions appear beyond the stack joint with typical dimensioning for joint widths and offsets.
C F12 261' - 0" 1 / 2 " 1 9 / 3 2 " ACCENT BAR OF STACK JT 1 5 / 1 6 " 1 3 / 8 " 2 1 / 1 6 " MULLION BEYOND EDGE OF 4 SIDED SSG JT MULLION BEYOND OF BRB 1 ' - 6 " 2 1 / 2 " T Y P . 1 3 / 4 " 1 0 " 3" = 1'-0" C1 ELEV DTL @ ACCENT BAR AND SLAB
