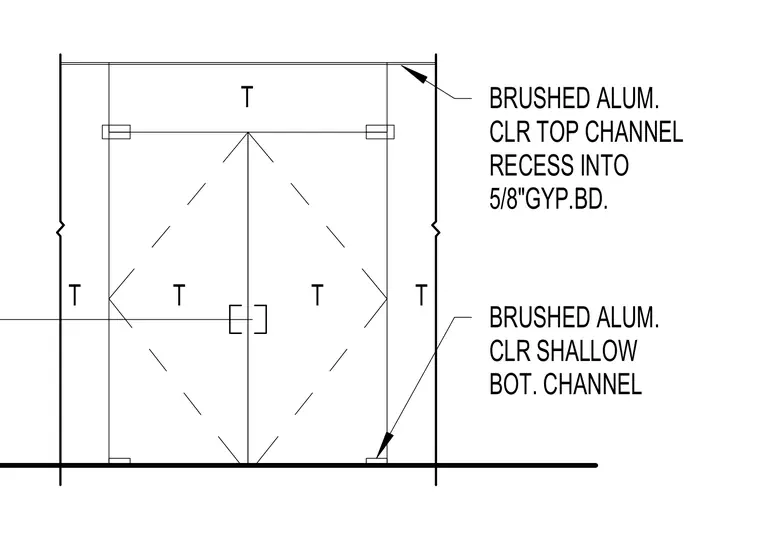

An interior glass entrance door is framed at the head by a brushed clear aluminum top channel recessed into a five-eighths-inch gypsum board ceiling or header. A brushed clear aluminum shallow bottom channel receives the base of the door assembly. The glazed panels are secured within these continuous aluminum extrusion channels.
T T T T T BRUSHED ALUM. CLR SHALLOW BOT. CHANNEL BRUSHED ALUM. CLR TOP CHANNEL RECESS INTO 5/8"GYP.BD.
