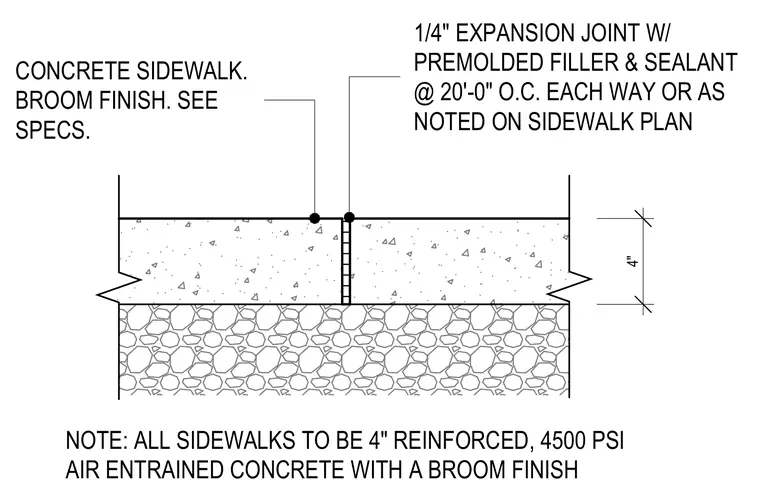

A four-inch thick reinforced concrete sidewalk rests on a compacted sub-base and features a broom finish. A one-quarter inch expansion joint with premolded filler and sealant is spaced at twenty feet on center each way. Concrete strength is specified at four thousand five hundred PSI with air entrainment.
4" NOTE: ALL SIDEWALKS TO BE 4" REINFORCED, 4500 PSI AIR ENTRAINED CONCRETE WITH A BROOM FINISH 1/4" EXPANSION JOINT W/ PREMOLDED FILLER & SEALANT @ 20'-0" O.C. EACH WAY OR AS NOTED ON SIDEWALK PLAN CONCRETE SIDEWALK. BROOM FINISH. SEE SPECS.
