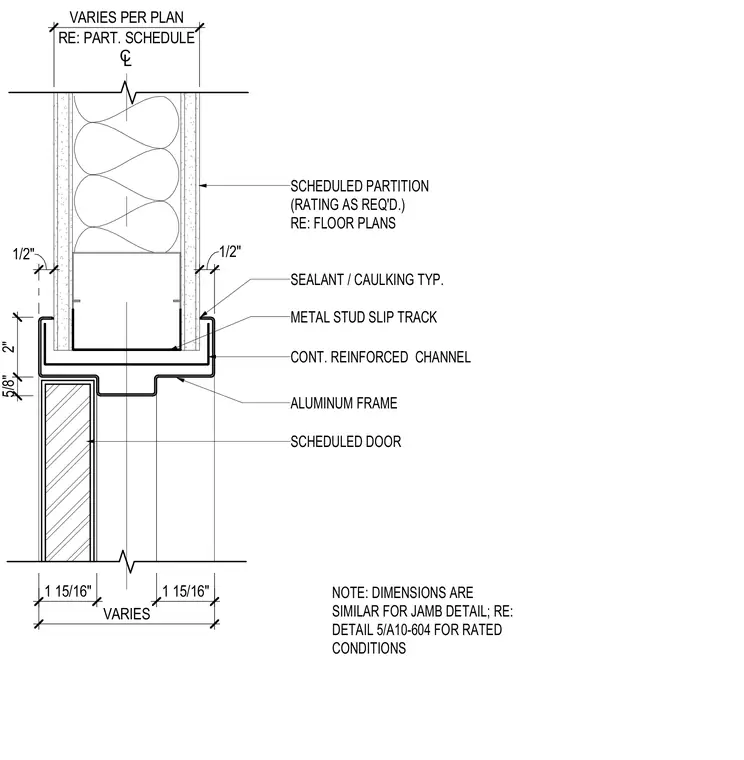

The head condition of a scheduled metal stud partition intersects an aluminum door frame. A metal stud slip track is housed within a continuous reinforced channel that receives the aluminum frame assembly. Typical sealant or caulking is applied at the perimeter joints between the frame and wall finishes. Gypsum wallboard layers finish each side of the partition, and dimensions are provided for framing clearances and offsets.
SCHEDULED PARTITION (RATING AS REQ'D.) RE: FLOOR PLANS METAL STUD SLIP TRACK CONT. REINFORCED CHANNEL ALUMINUM FRAME C L SCHEDULED DOOR 1/2" 1/2" RE: PART. SCHEDULE VARIES PER PLAN 1 15/16" 5/8" 2" SEALANT / CAULKING TYP. 1 15/16" VARIES NOTE: DIMENSIONS ARE SIMILAR FOR JAMB DETAIL; RE: DETAIL 5/A10-604 FOR RATED CONDITIONS
