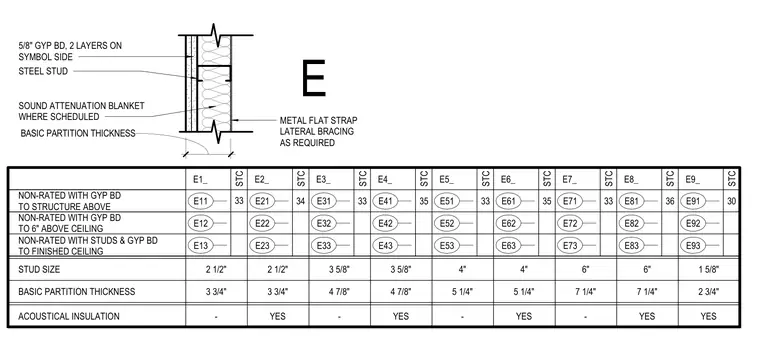

This non-rated interior steel stud partition detail shows steel studs faced with two layers of 5/8-inch gypsum board on the symbol side and optional sound attenuation blankets within the cavity. A metal flat strap provides lateral bracing as required across the framing. The accompanying schedule details stud sizes ranging from 1-5/8 inches to 6 inches, resulting in basic partition thicknesses from 2-3/4 inches to 7-1/4 inches with corresponding STC ratings from 30 to 36. Partitions extend either to the structure above, six inches above the ceiling, or to the finished ceiling line.
5/8" GYP BD, 2 LAYERS ON SYMBOL SIDE E NON-RATED WITH GYP BD TO STRUCTURE ABOVE NON-RATED WITH STUDS & GYP BD TO FINISHED CEILING STUD SIZE BASIC PARTITION THICKNESS ACOUSTICAL INSULATION E1_ STC 34 2 1/2" 3 3/4" - 2 1/2" 3 3/4" YES E2_ STC 33 3 5/8" 4 7/8" - E3_ STC 35 3 5/8" 4 7/8" E4_ STC 33 4" 5 1/4" - E5_ STC 35 4" 5 1/4" E6_ STC 33 6" 7 1/4" - E7_ STC 36 6" 7 1/4" E8_ STC 33 30 1 5/8" 2 3/4" E9_ STC NON-RATED WITH GYP BD TO 6" ABOVE CEILING BASIC PARTITION THICKNESS METAL FLAT STRAP LATERAL BRACING AS REQUIRED YES YES YES YES STEEL STUD SOUND ATTENUATION BLANKET WHERE SCHEDULED E11 E12 E13 E21 E22 E23 E31 E32 E33 E41 E42 E43 E51 E52 E53 E61 E62 E63 E71 E72 E73 E81 E82 E83 E91 E92 E93
