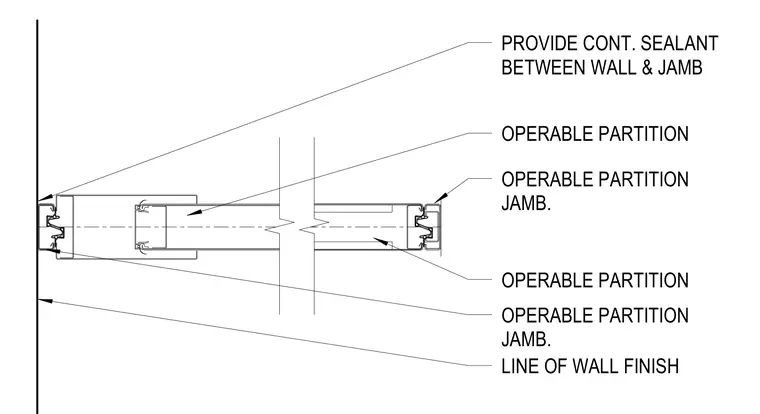

An operable partition jamb connects against a line of wall finish with continuous sealant provided between the wall and the jamb assembly. The operable partition unit aligns with the partition jamb framing profiles on both sides.
PROVIDE CONT. SEALANT BETWEEN WALL & JAMB LINE OF WALL FINISH OPERABLE PARTITION JAMB. OPERABLE PARTITION JAMB. OPERABLE PARTITION OPERABLE PARTITION
