Architectural · A-YJP2R

NFPA Hazard Sign Mounting Detail at Door

Elements

About this detail

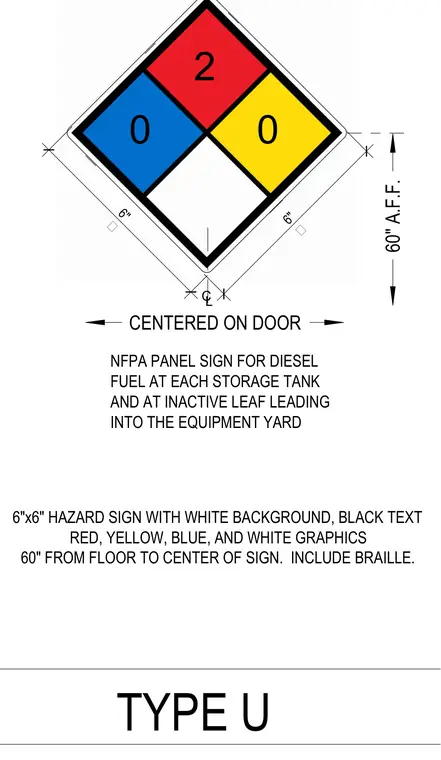

A six-inch by six-inch hazard sign features a white background with black text and red, yellow, blue, and white graphics, including braille. The sign is centered on the door and mounted at sixty inches above the finished floor to the center of the sign. This installation applies to each storage tank and to the inactive leaf leading into the equipment yard.
