Architectural · A-YJKHH

Clerestory Head and Window Junction at Steel Framing

Materials

Steel Cold-formed Steel Timber / Wood Metal (misc.)

Elements

Beams Windows Ceilings Anchors / Embeds

Connections

HSS Connection Welded Connection

About this detail

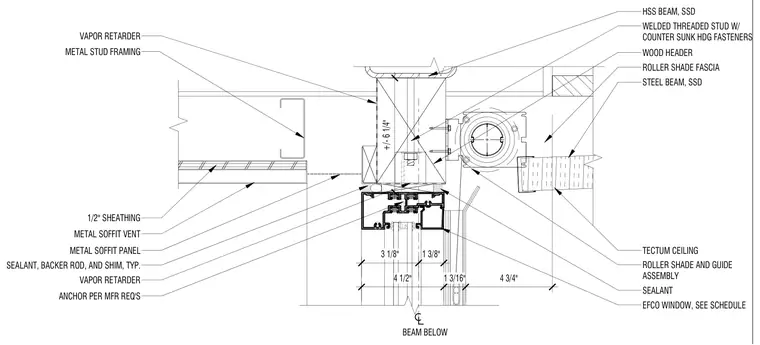

This clerestory head detail shows the intersection of an EFCO window frame with structural steel and hollow structural section beams above. A wood header is anchored via welded threaded studs with countersunk hot-dip galvanized fasteners, supporting a roller shade fascia and guide assembly adjacent to a Tectum ceiling. Sealant, backer rods, and shims provide the weather seal at the window head alongside a metal soffit panel and vent. Cold-formed steel metal stud framing with one-half-inch sheathing and continuous vapor retarders complete the envelope transition.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.

Start membership
