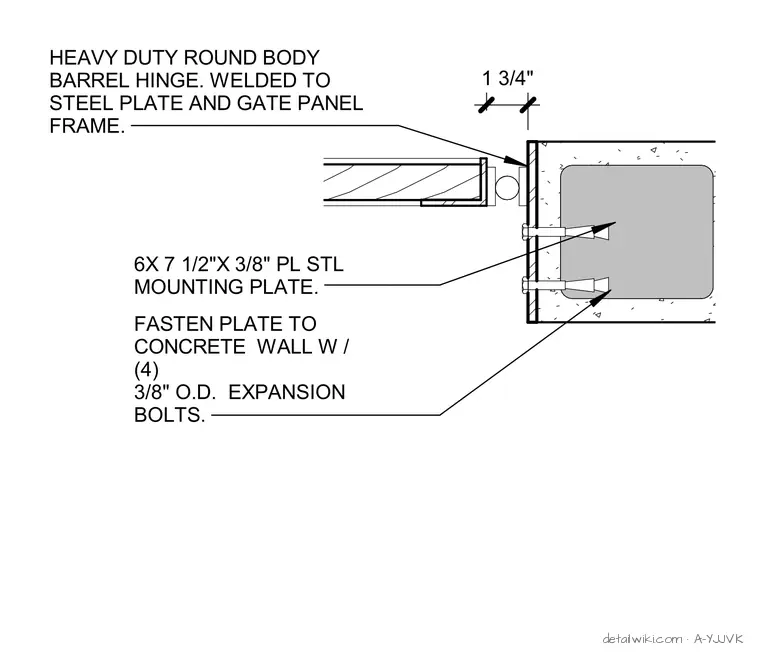

A heavy-duty round body barrel hinge connects the gate panel frame to a steel mounting plate via welds. The 6-inch by 7-1/2-inch by 3/8-inch steel mounting plate fastens to the concrete wall using four 3/8-inch outer diameter expansion bolts, positioned with a 1-3/4-inch clearance from the edge. All welds join the hinge directly to the steel plate and the gate frame.
HEAVY DUTY ROUND BODY BARREL HINGE. WELDED TO STEEL PLATE AND GATE PANEL FRAME. 1 3/4" FASTEN PLATE TO CONCRETE WALL W / (4) 3/8" O.D. EXPANSION BOLTS. 6X 7 1/2"X 3/8" PL STL MOUNTING PLATE.
