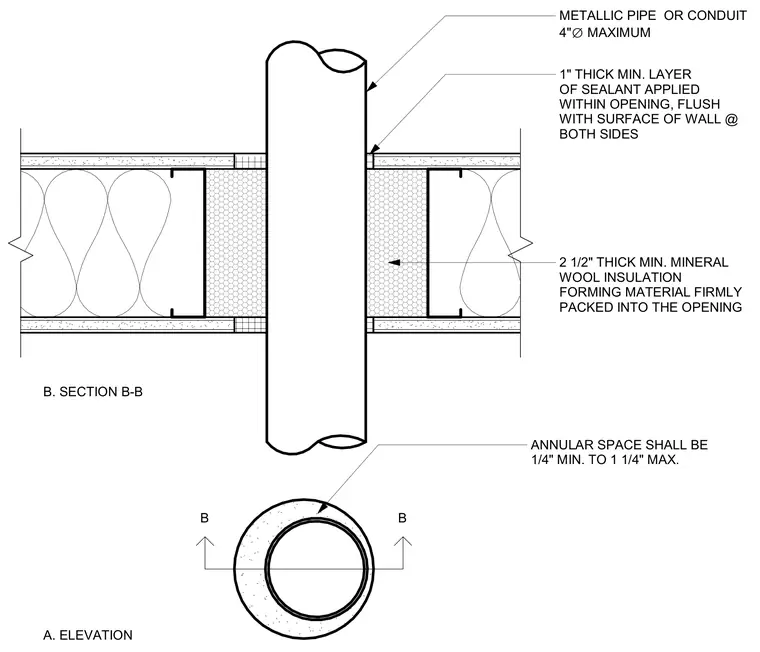

A metallic pipe or conduit up to four inches in diameter penetrates a framed partition wall with an annular space ranging from one-quarter inch to one and one-quarter inches. The opening is tightly packed with two and one-half inches minimum thickness of mineral wool insulation forming material. A one-inch minimum layer of sealant is applied within the opening and finished flush with the surface of the wall on both sides.
A. ELEVATION B. SECTION B-B B B METALLIC PIPE OR CONDUIT 4" ∅ MAXIMUM 1" THICK MIN. LAYER OF SEALANT APPLIED WITHIN OPENING, FLUSH WITH SURFACE OF WALL @ BOTH SIDES 2 1/2" THICK MIN. MINERAL WOOL INSULATION FORMING MATERIAL FIRMLY PACKED INTO THE OPENING ANNULAR SPACE SHALL BE 1/4" MIN. TO 1 1/4" MAX.
