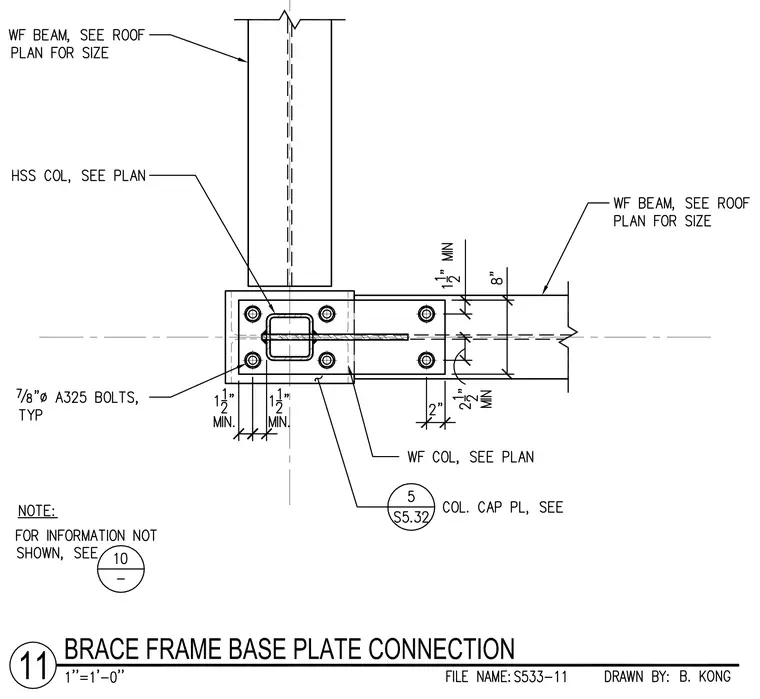

A hollow structural section column bears on a wide flange column with a cap plate sized per plan. A gusset plate passes through the hollow structural section column and connects to wide flange beams extending from the assembly. Seven-eighths-inch diameter A325 bolts typically fasten the connection components, with specified minimum edge distances of one and one-half inches and two and one-half inches. Additional framing members are sized per the roof plan.
