Architectural · A-YJ4WN

Steel Guardrail at Concrete Landing

Materials

Concrete Steel Metal (misc.)

Elements

Beams Stairs Railings / Guards Decks

Connections

HSS Connection Welded Connection

About this detail

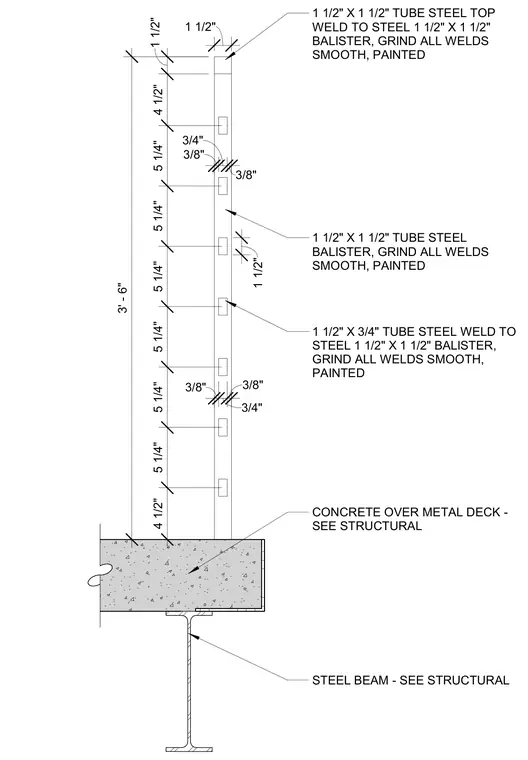

A steel guardrail assembly is mounted to a concrete over metal deck landing supported by a structural steel beam. The guardrail stands three feet six inches high, constructed with one and one-half by one and one-half inch steel tube balusters and horizontal rails. The members are welded together with welds ground smooth and painted. Intermediate rails of one and one-half by three-quarter inch steel tube are spaced vertically with specific dimensional clearances.
