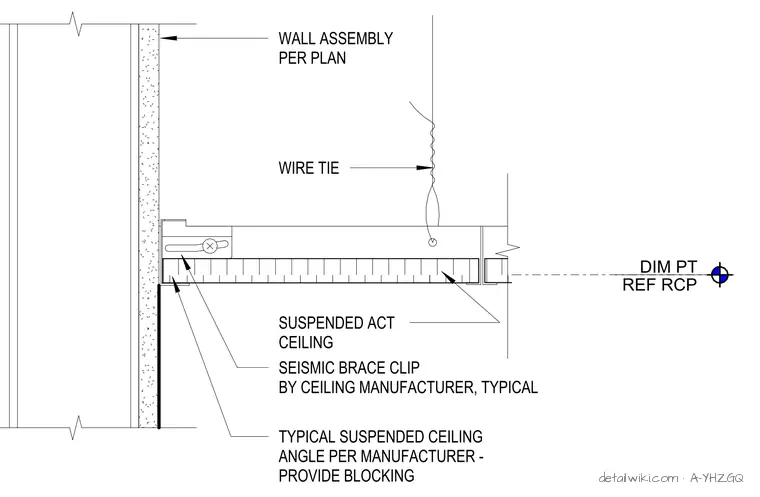

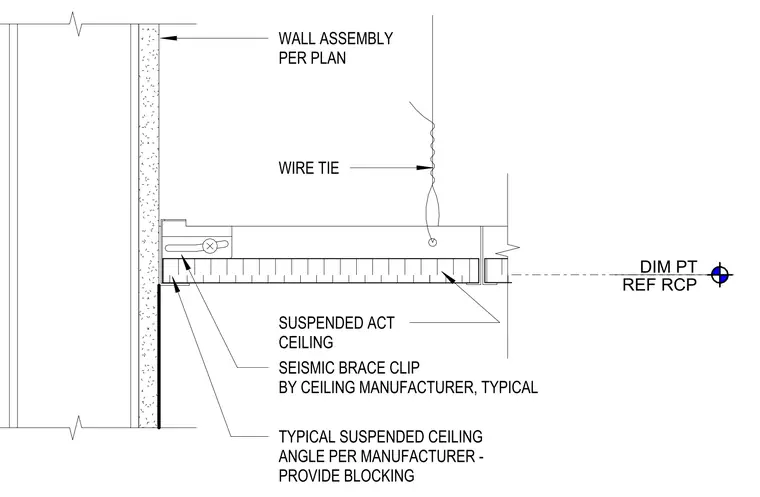

The suspended acoustical ceiling grid terminates at the wall assembly with a typical suspended ceiling angle provided by the manufacturer. A seismic brace clip is installed at the perimeter to secure the grid to the wall, which requires additional blocking. The ceiling grid is supported by a wire tie and is referenced to a dimension point on the reflected ceiling plan.
