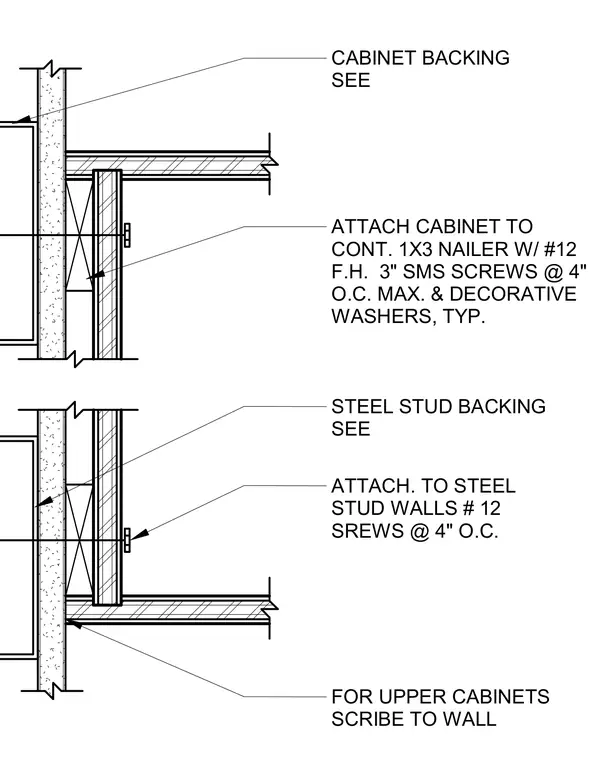

Upper and lower cabinets secure to steel stud walls using a continuous 1x3 wood nailer fastened with number 12 flat head 3-inch sheet metal screws at 4 inches on center maximum with decorative washers. The cabinet scribes directly to the wall finish. Steel stud framing provides internal backing for the cabinet attachment.
CABINET BACKING SEE ATTACH CABINET TO CONT. 1X3 NAILER W/ #12 F.H. 3" SMS SCREWS @ 4" O.C. MAX. & DECORATIVE WASHERS, TYP. STEEL STUD BACKING SEE FOR UPPER CABINETS SCRIBE TO WALL ATTACH. TO STEEL STUD WALLS # 12 SREWS @ 4" O.C.
