Architectural · A-YHKHX

Won-Door Jamb at Rated Wall and HSS Column

Materials

Concrete Steel Gypsum / Drywall

Elements

Columns Walls Doors Roof / Floor Openings

Connections

HSS Connection

About this detail

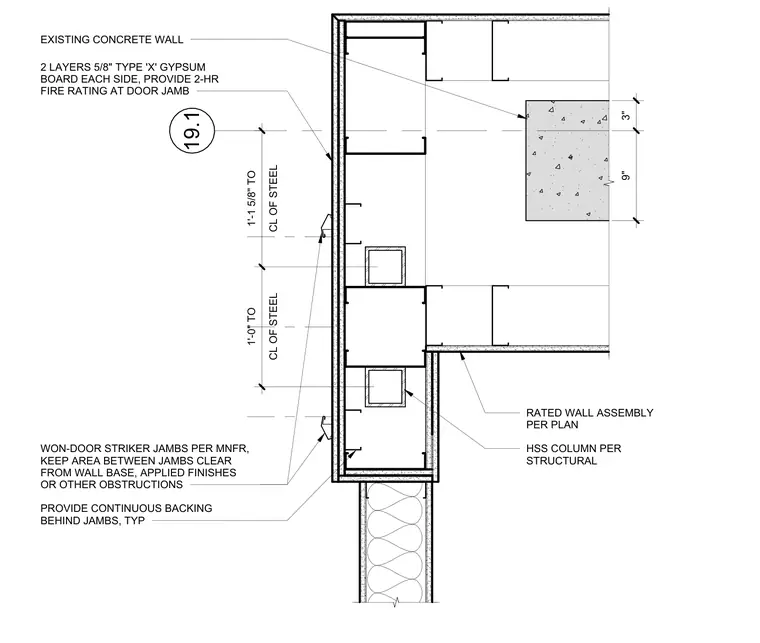

A Won-Door striker jamb assembly is integrated with an existing concrete wall and a hollow structural section column. The fire-rated wall assembly consists of two layers of five-eighths-inch Type X gypsum board on each side to achieve a two-hour fire rating at the door jamb. Continuous backing is provided behind the jambs, and the area between jambs is kept clear from the wall base, applied finishes, and other obstructions. HSS columns are installed per structural drawings, and Won-Door striker jambs are installed per manufacturer specifications.
