An interior storefront door jamb profile supports 1/4 inch typical laminated storefront glazing within an extruded aluminum framing system. The assembly features a 1-3/4 inch dimension across the frame profile and a total depth of 6 inches.

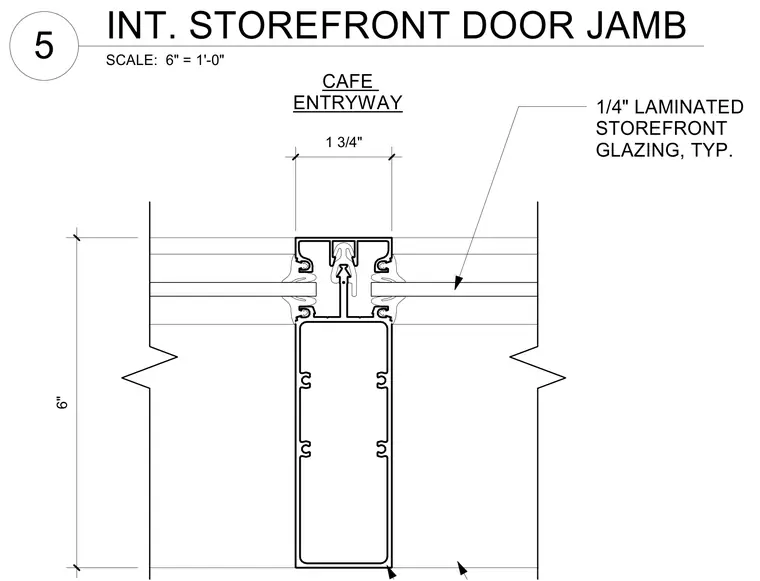

CAFE ENTRYWAY 1 3/4" 1/4" LAMINATED STOREFRONT GLAZING, TYP. 6" SCALE: 6" = 1'-0" 5 INT. STOREFRONT DOOR JAMB
