A-YHACP — Waterproofing at Elevator Pit

Architectural · A-YHACP

Waterproofing at Elevator Pit

Materials

Elements

Floors / Slabs Waterproofing / Flashing

About this detail

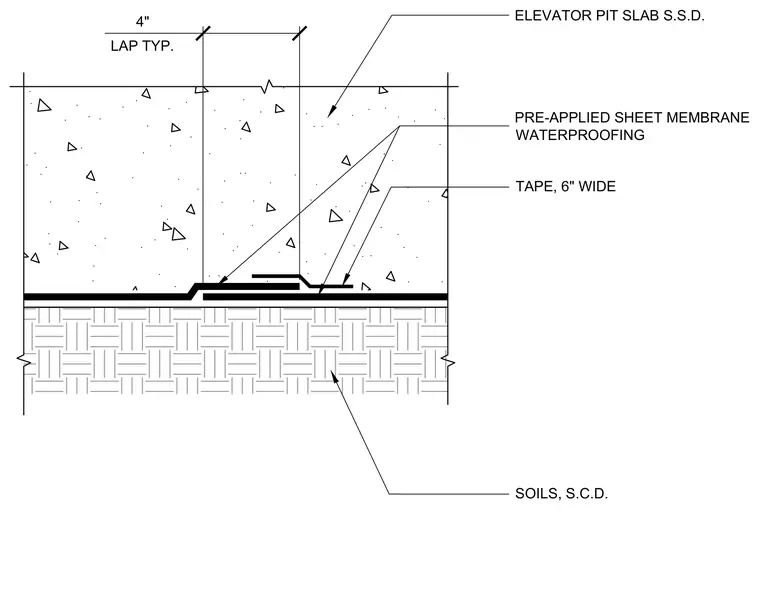

Pre-applied sheet membrane waterproofing is installed beneath the elevator pit concrete slab over prepared soils. Membrane laps measure four inches typically and are sealed with six-inch wide tape.

ELEVATOR PIT SLAB S.S.D. PRE-APPLIED SHEET MEMBRANE WATERPROOFING SOILS, S.C.D. 4" LAP TYP. TAPE, 6" WIDE

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
