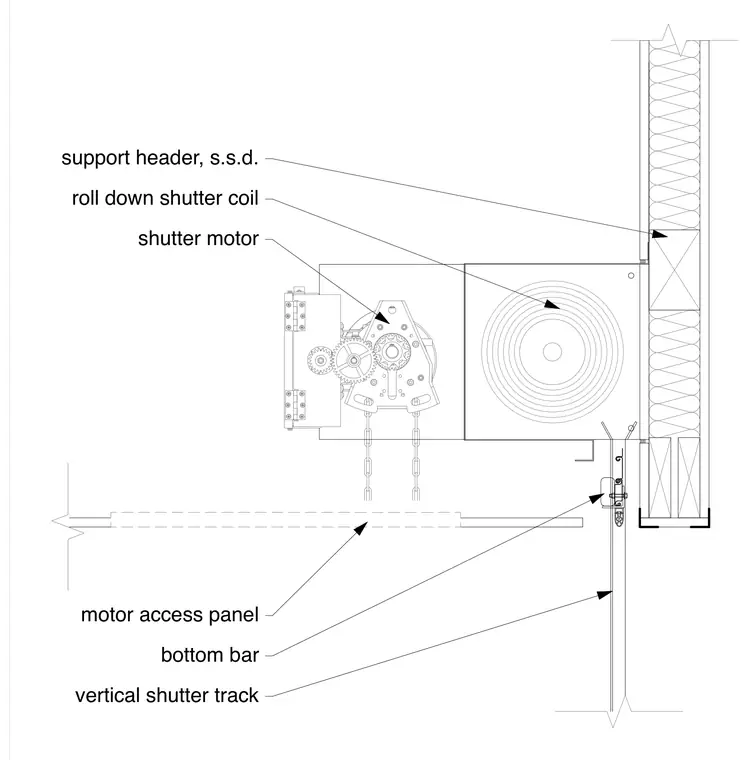

The head assembly of a motorized roll down shutter system mounts against a framed wall support. A support header provides anchorage for the roll down shutter coil and houses the shutter motor with internal gear mechanisms. A motor access panel allows maintenance access to the operator mechanism. The vertical shutter track guides the curtain assembly down to the bottom bar.
support header, s.s.d. roll down shutter coil shutter motor motor access panel bottom bar vertical shutter track
