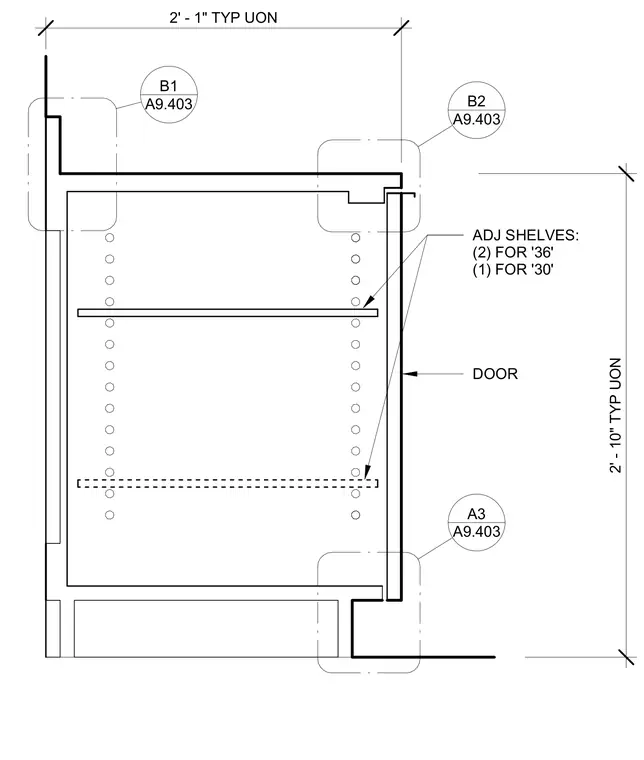

Millwork casework section showing adjustable shelving configured with two shelves for thirty-six inch units and one shelf for thirty inch units unless otherwise noted. Cabinet doors are dimensioned at two feet ten inches high by two feet one inch wide typical unless otherwise noted. Cabinet joinery and corner details are referenced by multiple detail callouts on sheet A9.403.
DOOR 2' - 10" TYP UON 2' - 1" TYP UON ADJ SHELVES: (2) FOR '36' (1) FOR '30' A9.403 A3 A9.403 B2 A9.403 B1
