The assembly consists of a six-inch diameter steel pipe, seven feet in length, filled with concrete and finished with a rounded concrete top. The pipe is painted safety yellow and is embedded into an eighteen-inch diameter concrete footing. The concrete base at the surface is sloped away from the bollard to promote drainage, with the finish grade determined per civil engineering drawings.

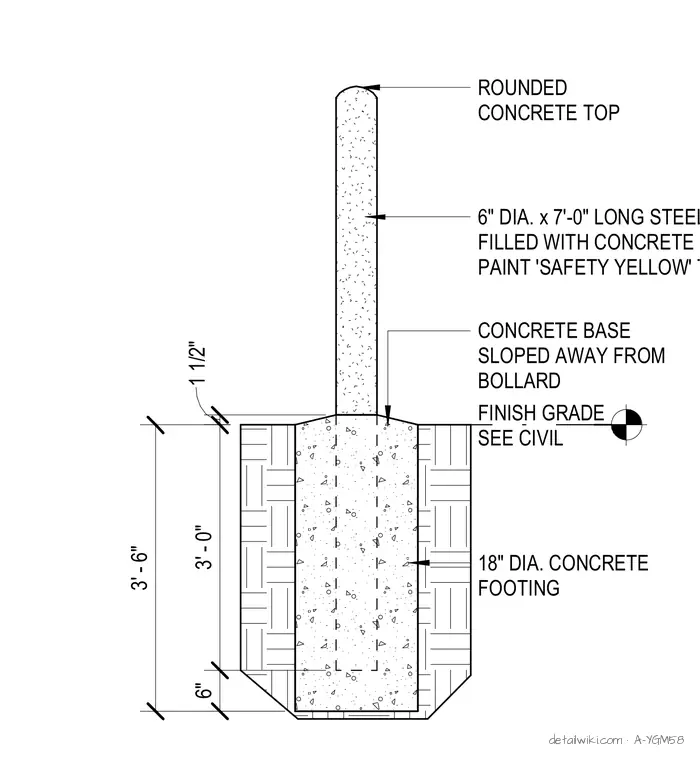

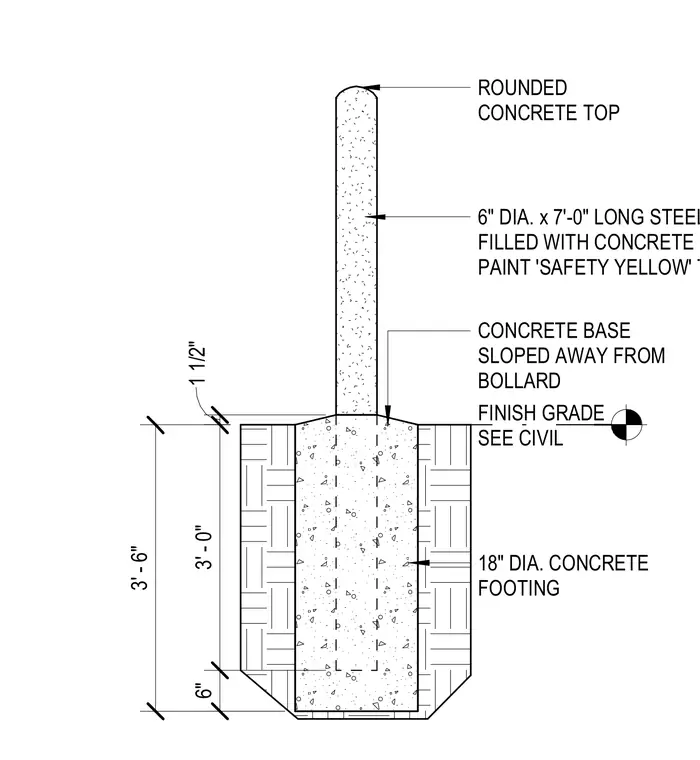

Text on the drawing
1 1/2" 3' - 0" 6" 3' - 6" 18" DIA. CONCRETE FOOTING ROUNDED CONCRETE TOP 6" DIA. x 7'-0" LONG STEEL PIPE FILLED WITH CONCRETE PAINT 'SAFETY YELLOW' TYP. CONCRETE BASE SLOPED AWAY FROM BOLLARD FINISH GRADE SEE CIVIL
